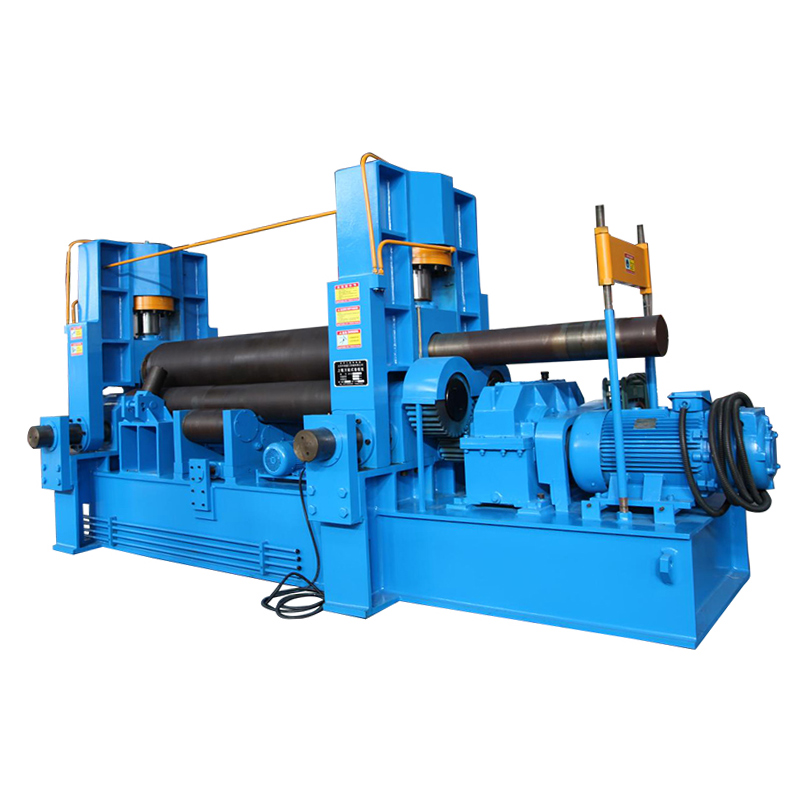

W11S Upper Roller Universal Plate Rolling Machine
3 roller upper roller rolling machine
Feature:
Application
Rolling machine is used for rolling the plate into round, arc and cone shape. Can pre-bending, with high rolling precision, no need use any subsidiary equipment, less investment.
Machine widely used in petroleum, chemical industry, cement, boiler, shipbuilding, aviation, water conservancy, power transmission towers and other machinery and equipment. With simple stable and safe structure, easy operate and seldom broken.
Technical Performance
The machine adopts the Japanese technology, passed the EU CE certification and ISO quality system certification
1. Its working principle is rotating bending deformation.
2. With the pre-bending capacity, improve working efficiency.
3. Control by PLC, high degree of automation, easy in operation.
4. The machine works by top roller and two bottom rollers. The top roller can move vertically as well as horizontally, high precision, easy for plate feeding and convenient for rolling.
5. When machine is rolling plate into cone, it can roll one-third thickness compared with that of rolling round.
6. All rollers with hardened treatment.
| Model | Max.rolling thickness |
Max.pre-rolling thickness |
Plate Width | Diameter of top roller |
Diameter of bottom roller | Distance between bottom roller | Main motor power |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kw) | |
| W11STNC-12x2000 | 12 | 10 | 2000 | 250 | 145 | 200 | 5.5 |
| W11STNC-16x2000 | 16 | 12 | 2000 | 260 | 150 | 245 | 7.5 |
| W11STNC-16x2500 | 16 | 12 | 2500 | 300 | 165 | 270 | 15 |
| W11STNC-18x3000 | 18 | 14 | 3000 | 350 | 180 | 300 | 15 |
| W11STNC-20x3000 | 20 | 16 | 3000 | 375 | 200 | 330 | 22 |
| W11STNC-25x2500 | 25 | 20 | 2500 | 380 | 220 | 360 | 22 |
| W11STNC-30x2500 | 30 | 25 | 2500 | 410 | 235 | 380 | 30 |
| W11STNC-30x3000 | 30 | 25 | 3000 | 450 | 250 | 400 | 30 |
| W11STNC-35x2500 | 35 | 30 | 2500 | 440 | 270 | 420 | 37 |
| W11STNC-35x3000 | 35 | 30 | 3000 | 510 | 275 | 460 | 45 |
| W11STNC-40x2500 | 40 | 35 | 2500 | 500 | 275 | 460 | 45 |
| W11STNC-40x3000 | 40 | 35 | 3000 | 540 | 290 | 480 | 55 |
| W11STNC-40x4000 | 40 | 32 | 4000 | 630 | 340 | 610 | 55 |
| W11STNC-45x3000 | 45 | 40 | 3000 | 560 | 310 | 580 | 55 |
| W11STNC-50x4000 | 50 | 45 | 4000 | 650 | 380 | 700 | 75 |
| W11STNC-60x3000 | 60 | 50 | 3000 | 650 | 380 | 700 | 75 |
| W11STNC-60x4000 | 60 | 55 | 4000 | 730 | 420 | 790 | 90 |
| W11STNC-70x3000 | 70 | 60 | 3000 | 710 | 420 | 780 | 75 |
| W11STNC-80x3000 | 80 | 70 | 3000 | 770 | 460 | 880 | 90 |
| W11STNC-90x3000 | 90 | 80 | 3000 | 800 | 480 | 880 | 90 |
| W11STNC-100x3000 | 100 | 90 | 3000 | 860 | 480 | 920 | 90 |
| W11STNC-120x3000 | 120 | 100 | 3000 | 900 | 560 | 1020 | 90 |
| W11STNC-150x3000 | 150 | 120 | 3000 | 970 | 680 | 1280 | 2x75 |
| W11STNC-180x3000 | 180 | 165 | 3000 | 1190 | 720 | 1350 | 2x90 |
1. How about your machine quality? We are worry about the quality?
ZHONGWEI is famous brand in CHINA, through many years research in technology, management, our design including structure and part security and precision has been promoted greatly, conform to all the CE standard or more strict standards. Complete production and detection process and guarantee machine excellent quality. Our machines distribute worldwide to about 60 countries and 29 sub-office in China where there are metal plate industry, there are ZHONGWEI machines. And where there are our machines, there are good reputation and terminal user satisfaction.
2. How about your factory in China?
"ZHONGWEI located in NANTONG CITY, JIANGSU province where is the center area in China and also in the worldwide of themetal plate solution machines. Rich experience in this field with professional technical supporting and oriented service. We have worked about 48 years in this area and totally have about 260 staffs. We have won the honor of ‘the national high and new technology enterprise’, ’contract trustworthiness enterprise’, ’Credit AAA enterprise’ and so on.
We welcome your visit our factory at any time.
